MyQLM-Fermion
A submodule of myQLM-fermion is specifically devoted to quantum chemistry. It provides tools for selecting active spaces
(based on natural-orbital occupation numbers), generating cluster operators (and thus, via the aforementioned Trotterization
tools, UCC-type ansätze), and initial guesses for their variational parameters. The architecture of QLM and myQLM-fermion
allows for experts in a given field to construct their own advanced modules with the QLM building blocks.
The key building block of quantum chemistry computations is the Hamiltonian. On QLM, it is described by an object
ElectronicStructureHamiltonian
1 from qat . fermion import ElectronicStructureHamiltonian
2 hamiltonian = ElectronicStructureHamiltonian (h , g)
where h and g are the tensors ℎ_pq and ℎ_pqrs. Such an object also describes cluster operators
1from qat . fermion import get_cluster_ops
2cluster_ops = get_cluster_ops ( n_electrons , nqbits = nqbits )
creates the list containing the sets of single excitations and double excitations wnich can be readily converted to a spin (or qubit) representation using various fermion-spin transforms:
1
2 # Jordan - Wigner
3 from qat . fermion . transforms import transform_to_jw_basis
4 hamiltonian_jw = transform_to_jw_basis ( hamiltonian )
5 cluster_ops_jw = [ transform_to_jw_basis ( t_o ) for t_o in cluster_ops ]
6
7 # Bravyi - Kitaev
8 from qat . fermion . transforms import transform_to_bk_basis
9 hamiltonian_bk = transform_to_bk_basis ( hamiltonian )
10 cluster_ops_bk = [ transform_to_bk_basis ( t_o ) for t_o in cluster_ops ]
With these qubit operators, one can then easily contruct a imple UCCSD ansatz via trotterization of the exponential of the parametric cluster operator defined as cluster_ops_jw
1from qat . lang . AQASM import Program , X
2from qat . fermion . trotterisation import make_trotterisation_routine
3
4prog = Program ()
5reg = prog . qalloc ( nqbits )
6# Create Hartree - Fock state ( assuming JW representation )
7
8for qb in range ( n_electrons ) :
9prog . apply (X , reg [ qb ])
10
11 # Define the full cluster operator with its parameters
12theta_list = [ prog . new_var (float , "\\ theta_ {%s}" % i) for i in range (len ( cluster_ops_jw ) )]
13cluster_op = sum ([ theta * T for theta , T in zip( theta_list , cluster_ops_jw ) ])
14
15# Trotterize the Hamiltonian ( with 1 trotter step )
16qrout = make_trotterisation_routine ( cluster_op , n_trotter_steps =1 , final_time =1)
17prog . apply ( qrout , reg )
18circ = prog . to_circ ()
The circuit we constructed, circ, is a variational circuit that creates a variational wavefunction. Its parameters can be optimized to minimize the variational energy which can be done by a simple VQE loop with the UCC method

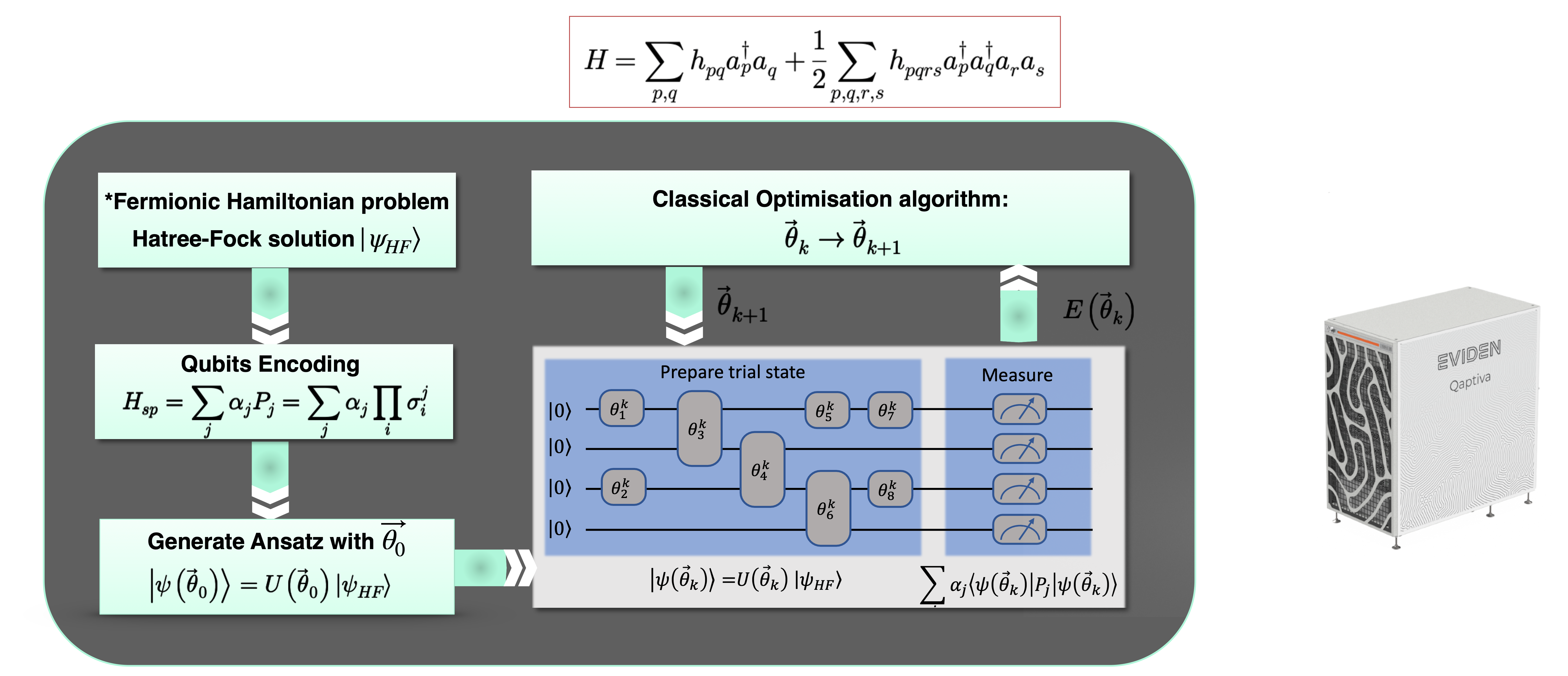

A simulation starts by constructing a fermionic Hamiltonian with particularly straightforward initialization as a classical mean-field state; most often as a HF product state $$ \ket{\psi_{HF}} $$ . This is required as the reference preparation for the UCC-chemically-inspired ansatz.
The fermionic Hamiltonian is mapped into a qubit Hamiltonian, represented as a sum of Pauli strings: $$ H = \sum_j \alpha_j \prod_i \sigma_i^j, $$ where $$ \sigma_i^j \in \{ \text{I}, X, Y, Z \} $$ .
A quantum circuit implementing the unitary operator $$ U(\vec{{\bm{\theta}} }) $$ is applied to $$ \ket{\psi_{HF}} $$ , mapping the initial state to a parameterized “Ansatz” state: $$ |\psi(\vec{{\bm{\theta}}}) \rangle = U(\vec{{\bm{\theta}}}) |\psi_{HF} \rangle. $$ Thus, the trial state is prepared on a quantum computer as a quantum circuit consisting of parameterized gates.
One measures the expectation value of the energy: $$ \langle H \rangle = \langle \psi_{HF}(\vec{{\bm{\theta}}}_0) | H | \psi_{HF}(\vec{{\bm{\theta}}}_0) \rangle. $$ At iteration $$ k $$ , the energy of the Hamiltonian is computed by measuring every Hamiltonian term: $$ \langle \psi(\vec{{\bm{\theta}}_k}) | P_j | \psi(\vec{{\bm{\theta}}_k}) \rangle $$ on a quantum computer and adding them on a classical computer.
The energy $$ E(\vec{{\bm{\theta}}_k}) $$ is fed into the classical algorithm that updates parameters for the next step of optimization $$ \vec{{\bm{\theta}}}_{k+1} $$ according to the chosen optimization algorithm.
1# create a quantum job containing the variational circuit and the Hamiltonian
2job = circ . to_job ( observable = hamiltonian_jw , nbshots =0)
3# import a plugin to perform the optimization
4from qat . plugins import scipyMinimizePlugin
5optimizer_scipy = scipyMinimizePlugin ( method =" COBYLA ", tol =1e -3 , options ={" maxiter ": 1000} , x0 = theta_init )
6
7# import a QPU to execute the quantum circuit
8from qat . qpus import get_default_qpu
9
10# define the quantum stack
11stack = optimizer_scipy | get_default_qpu ()
12# submit the job and read the result
13result = stack . submit ( job )
14print (" Minimum energy =", result . value )
Active space selection
In the context of chemical properAmiensties regardless of small/large molecular systems, the lowest orbitals are assumed to be frozen and fully occupied, contributing to the core energy. The highest orbitals, on the other hand, are considered non-active and empty. Mathematically, the Quantum Learning Machine (QLM) \cite{haidar2023open} defines two subspaces: active orbitals ($\mathcal{A}$) and occupied orbitals ($\mathcal{O}$). By calculating the eigenvalues of the molecule’s reduced density matrix, the Natural Orbital Occupation Numbers $n_i$ for each molecular orbital $i$ are obtained. We use the QLM library, which contains a function that enables us to determine the population of the two subspaces, through upper and lower thresholds $\epsilon_1$ and $\epsilon_2$ to select the relevant orbitals. In fact, the choice of $\epsilon_1$ and $\epsilon_2$ is the choice of the active orbitals.
$$ \mathcal{A} = \{i \ | \ n_i \in [\epsilon_2,2-\epsilon_1] \} \cup \{i \ | \ n_i \geq 2 - \epsilon_1, \ 2(i+1) \geq N_{elec} \} $$ $$ \mathcal{O} = \{i \ | \ n_i \geq 2 - \epsilon_1, \ 2(i+1) < N_{elec} \}. $$The QLM function can then evaluate the one-body term and the core energy.
$$ \forall p,q \in \mathcal{A} $$ $$ h_{pq} \text{-----} h_{pq} + \sum_{i \in \mathcal{O}} 2h_{ipqi} - h_{ipiq}, $$ $$ E_{\rm core} \text{-----} E_{\rm core} + \sum_{i \in \mathcal{O}} h_{ii} + \sum_{i,j \in \mathcal{O}} 2h_{ijji} - h_{ijij}. $$To apply CAS on UCCSD ansatz, it is required to determine the total number of electrons $n_{e}$ and the subspace of spin orbitals $\mathcal{O}$ in a molecule. Then we can determine the number of active electrons $n_{e_{act}} = n_{e} - 2|\mathcal{O}|$ as well as the number of electrons that are distributed over the active orbitals. Therefore $\mathcal{A}$ is divided into two sub-spaces : $\mathcal{I'}$ which contains the unoccupied active orbitals and $\mathcal{O'}$ containing the occupied active orbitals, and the anti-Hermitian operator is created:
$\forall i,j,p,q \in \mathcal{I'}^{2}\times\mathcal{O'}^{2}$
$$ T^{(\mathrm{CAS})}_{\mathrm{UCCSD}} = \sum_{i\in \mathcal{O^{\prime }} , p\in \mathcal{I^{\prime }}} \theta^{p}_{i} (\hat{a}^{\dagger }_{i} \hat{a}_{p} -\hat{a}^{\dagger }_{p} \hat{a}_{i}) + + \sum_{i,j\in \mathcal{O^{\prime }}, p,q\in \mathcal{I^{\prime }}} \theta^{pq}_{ij} (\hat{a}^{\dagger }_{i} \hat{a}^{\dagger }_{j} \hat{a}_{p} \hat{a}_{q} - \hat{a}^{\dagger }_{p} \hat{a}^{\dagger }_{q} \hat{a}_{i} \hat{a}_{j}) $$
Visualization of spatial orbitals in LiH molecule uisng sto-3g basis-set: 2 HUMOs and 4 LUMOs.

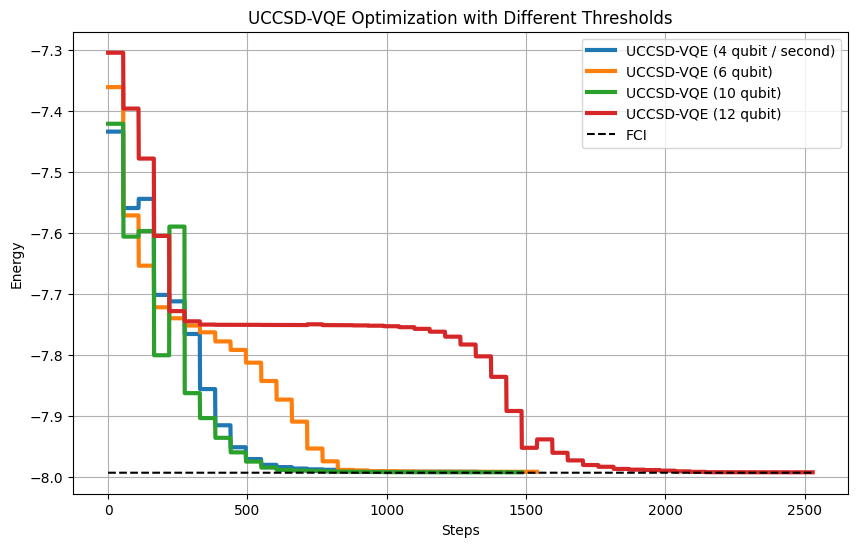

In this method we have the figure of the plot with respect to certain number of qubit with respect to the orbital energy
1import matplotlib.pyplot as plt
2
3# Sample data (you can replace this with your actual data)
4noons = list(reversed(noons))
5
6# Define the threshold couples and their corresponding labels
7threshold_couples = [
8 (0.02, 0.004, "4 qubit / second"),
9 (0.02e-6, 0.002, "6 qubit"),
10 (0.02, 0.001, "10 qubit"),
11 (0.02, 0.001e-1, "12 qubit"),
12]
13
14# Initialize lists to store optimization results
15results = []
16
17# Iterate through different threshold couples
18for threshold_1, threshold_2, label in threshold_couples:
19 mol_h_active, active_indices, occupied_indices = mol_h_new_basis.select_active_space(
20 noons=noons, n_electrons=n_elec, threshold_1=threshold_1, threshold_2=threshold_2
21 )
22
23 # Rest of your code for getting theta_list and performing the optimization...
24
25 # Store the result
26 result = qpu.submit(job)
27 results.append((result, label))
28
29# Create the plot for UCCSD-VQE with multiple threshold couples
30plt.figure(figsize=(10, 6))
31for result, label in results:
32 plt.plot(eval(result.meta_data["optimization_trace"]), label=f"UCCSD-VQE ({label})", lw=3)
33
34plt.plot(
35 [info["FCI"] for _ in range(len(eval(result.meta_data["optimization_trace"])))],
36 "--k",
37 label="FCI",
38)
39plt.legend(loc="best")
40plt.xlabel("Steps")
41plt.ylabel("Energy")
42plt.grid()
43plt.title("UCCSD-VQE Optimization with Different Thresholds")
44plt.show()

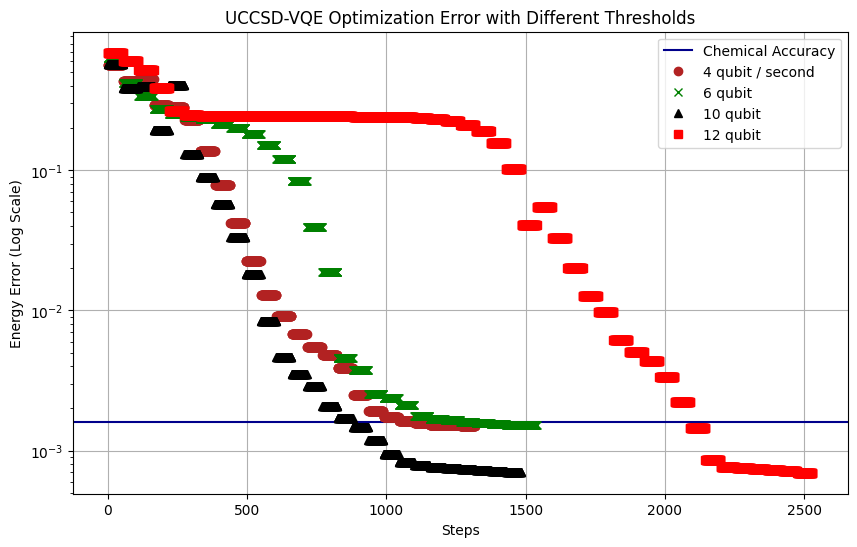

If we make the plot with the threshold
1FCI_energy = info['FCI']
2
3markers = ['o', 'x', '^', 's']
4colors = ['firebrick', 'green', 'black', 'red']
5
6plt.figure(figsize=(10, 6))
7for (result, label), marker, color in zip(results, markers, colors):
8 optimization_trace = eval(result.meta_data["optimization_trace"])
9 errors = [abs(energy - FCI_energy) for energy in optimization_trace]
10 steps = list(range(len(errors)))
11 plt.errorbar(steps, errors, fmt=marker, color=color, elinewidth=1, capsize=2, label=f"{label}")
12
13# Plot the chemical accuracy line
14plt.axhline(y=1.593e-3, color='darkblue', linestyle='-', label="Chemical Accuracy")
15
16plt.yscale('log')
17plt.legend(loc="best")
18plt.xlabel("Steps")
19plt.ylabel("Energy Error (Log Scale)")
20plt.grid()
21plt.title("UCCSD-VQE Optimization Error with Different Thresholds")
22plt.show()
